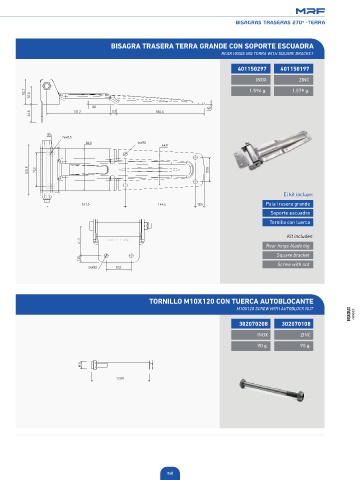

BISAGRAS TRASERAS 270º ·TERRA
BISAGRA TRASERA TERRA GRANDE CON SOPORTE ESCUADRA
REAR HINGE BIG TERRA WITH SQUARE BRACKET
401150297 401150197
INOX ZINC
52,0 1.594 g. 1.579 g.
38,0
8,0 4,0
36,5 131,2 12,7 180,6
8,5
2x ø 8,5
86,0 4x ø 8,5
64,0
105 ,5 70,0 50,0
El kit incluye:
161,5 144,5 18,5 Pala trasera grande
Soporte escuadra
Tornillo con tuerca
Kit includes:
61,5
Rear hinge blade big
Square bracket
13,0
Screw with nut
2x ø 8,5 51,5
TORNILLO M10X120 CON TUERCA AUTOBLOCANTE
M10X120 SCREW WITH AUTOBLOCK NUT
BISAGRAS HINGES
302070208 302070108
INOX ZINC
90 g. 90 g.
M 10
120,0
158
