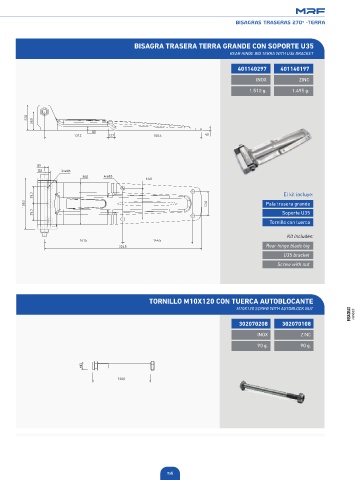

P. 159
BISAGRAS TRASERAS 270º ·TERRA
BISAGRA TRASERA TERRA GRANDE CON SOPORTE U35
REAR HINGE BIG TERRA WITH U35 BRACKET
401140297 401140197
INOX ZINC
1.510 g. 1.495 g.
52,0
38,0
8,0
131,2 12,7 180,6 4,0
8,5
12,8 3x ø 8,5
86,0 4x ø 8,5
64,0
35,0 El kit incluye:
105,5 50,0 Pala trasera grande
35,0 Soporte U35
Tornillo con tuerca
Kit includes:
161,5 144,5
324,5 Rear hinge blade big
U35 bracket
Screw with nut
TORNILLO M10X120 CON TUERCA AUTOBLOCANTE
M10X120 SCREW WITH AUTOBLOCK NUT
BISAGRAS HINGES
302070208 302070108
INOX ZINC
90 g. 90 g.
M 10
120,0
156
