P. 165

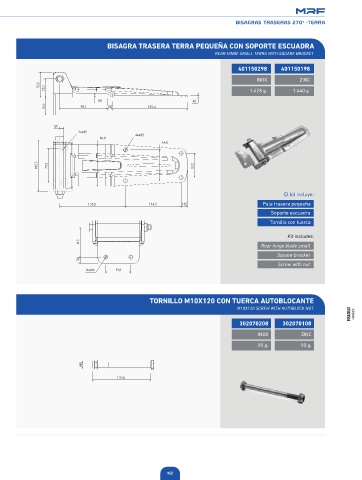

BISAGRAS TRASERAS 270º ·TERRA
BISAGRA TRASERA TERRA PEQUEÑA CON SOPORTE ESCUADRA
REAR HINGE SMALL TERRA WITH SQUARE BRACKET
401150298 401150198
INOX ZINC
52,0
38,0 1.428 g. 1.440 g.
8,0 4,0
36,5 98,1 10,0 155,4
8,5
2x ø 8,5
4x ø 8,5
86,0
64,0
105,5 70,0 50,0
El kit incluye:
135,5 114,5 13,5 Pala trasera pequeña
Soporte escuadra
Tornillo con tuerca
Kit includes:
61,5
Rear hinge blade small
Square bracket
13,0
Screw with nut
2x ø 8,5 51,5
TORNILLO M10X120 CON TUERCA AUTOBLOCANTE
M10X120 SCREW WITH AUTOBLOCK NUT
BISAGRAS HINGES
302070208 302070108
INOX ZINC
90 g. 90 g.
M 10
120,0
162
