P. 173

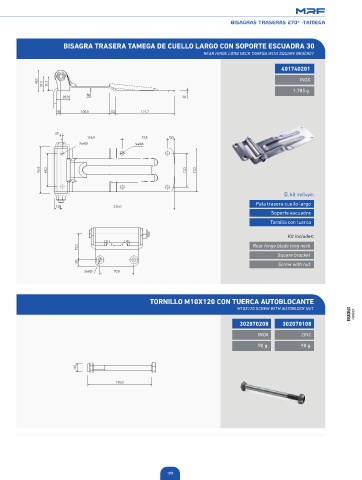

BISAGRAS TRASERAS 270º ·TAMEGA
BISAGRA TRASERA TAMEGA DE CUELLO LARGO CON SOPORTE ESCUADRA 30
REAR HINGE LONG NECK TAMEGA WITH SQUARE BRACKET
401740201
45,0 INOX
32,0 30,0
1.785 g.
8,0
28,0 3,0
9,5 100,0 13,3 121,7
2,8
126,0 93,5 15,5
2x ø 8,5 4x ø 8,5
96,0 68,0 70,0 90,0
El kit incluye:
Pala trasera cuello largo
13,0 235,0
Soporte escuadra
Tornillo con tuerca
Kit includes:
53,5 Rear hinge blade long neck
Square bracket
13,0 Screw with nut
2x ø 8,5 70,0
TORNILLO M10X120 CON TUERCA AUTOBLOCANTE
M10X120 SCREW WITH AUTOBLOCK NUT
BISAGRAS HINGES
302070208 302070108
INOX ZINC
90 g. 90 g.
M 10
120,0
170
