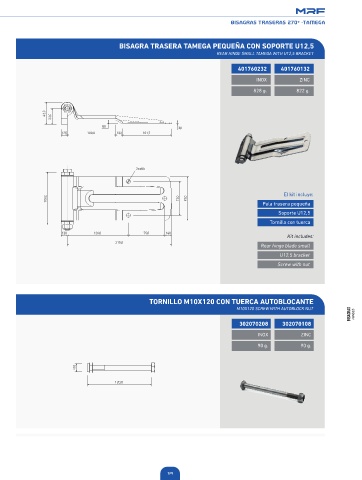

BISAGRAS TRASERAS 270º ·TAMEGA
BISAGRA TRASERA TAMEGA PEQUEÑA CON SOPORTE U12,5
REAR HINGE SMALL TAMEGA WITH U12,5 BRACKET
401760232 401760132
INOX ZINC
828 g. 822 g.
46,0 33,0
8,0
3,0
12,5 100,0 13,3 101,7
3x ø8,5
El kit incluye:
108,0 70,0 90,0
Pala trasera pequeña
Soporte U12,5
Tornillo con tuerca
13,0 126,0 75,0 14,0
Kit includes:
215,0
Rear hinge blade small
U12,5 bracket
Screw with nut
TORNILLO M10X120 CON TUERCA AUTOBLOCANTE
M10X120 SCREW WITH AUTOBLOCK NUT
BISAGRAS HINGES
302070208 302070108
INOX ZINC
90 g. 90 g.
M 10
120,0
