P. 169

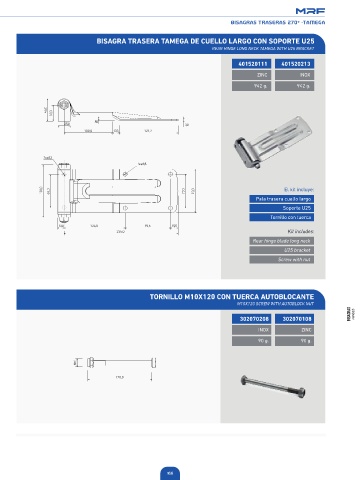

BISAGRAS TRASERAS 270º ·TAMEGA
BISAGRA TRASERA TAMEGA DE CUELLO LARGO CON SOPORTE U25
REAR HINGE LONG NECK TAMEGA WITH U25 BRACKET
401520111 401520213
ZINC INOX
942 g. 942 g.
46,0
33,0
8,0
25,0 3,0
100,0 13,3 121,7
2x ø8,3
4x ø8,5
108,0 68,0 70,0 90,0 El kit incluye:
Pala trasera cuello largo
Soporte U25
Tornillo con tuerca
13,0 126,0 93,5 15,5
235,0 Kit includes:
Rear hinge blade long neck
U25 bracket
Screw with nut
TORNILLO M10X120 CON TUERCA AUTOBLOCANTE
M10X120 SCREW WITH AUTOBLOCK NUT
BISAGRAS HINGES
302070208 302070108
INOX ZINC
90 g. 90 g.
M 10
120,0
