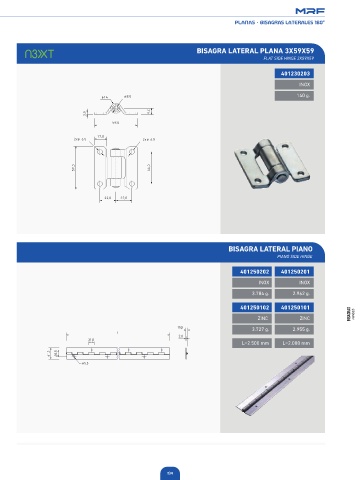

PLANAS · BISAGRAS LATERALES 180°

BISAGRA LATERAL PLANA 3X59X59
FLAT SIDE HINGE 3X59X59

401230203

INOX

ø 14 ø 8,0 140 g.

3,0 9,0
59,0

17,0
ø
2x 6.5 2x 6.5
ø

59,0 44,0

22,0 22,0

BISAGRA LATERAL PIANO
PIANO SIDE HINGE

401250202 401250201
INOX INOX

3.784 g. 2.962 g.

401250102 401250101
ZINC ZINC BISAGRAS HINGES
10,5 3.727 g. 2.955 g.
L
2,0
31,0
L=2.500 mm L=2.000 mm
61,5 38,5
ø 5,5
