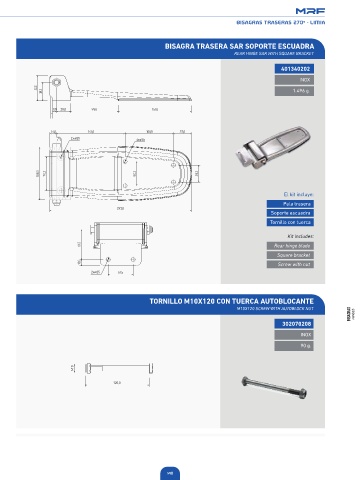

BISAGRAS TRASERAS 270º · LIMIA
BISAGRA TRASERA SAR SOPORTE ESCUADRA
REAR HINGE SAR WITH SQUARE BRACKET
401340202
INOX
52,0
38,0 1.496 g.
9,0 28,0 99,0 151,0
14,0 141,0 100,0 37,0
9,5 2x ø 8,5 4x ø 8,5
108,5 70,0 50,0 35,0
El kit incluye:
Pala trasera
292,0
Soporte escuadra
Tornillo con tuerca
Kit includes:
61,5 Rear hinge blade
Square bracket
13,0 Screw with nut
2x ø 8,5 51,5
TORNILLO M10X120 CON TUERCA AUTOBLOCANTE
M10X120 SCREW WITH AUTOBLOCK NUT
BISAGRAS HINGES
302070208
INOX
90 g.
M 10
120,0
140
