TECHNICAL DATA SHEET

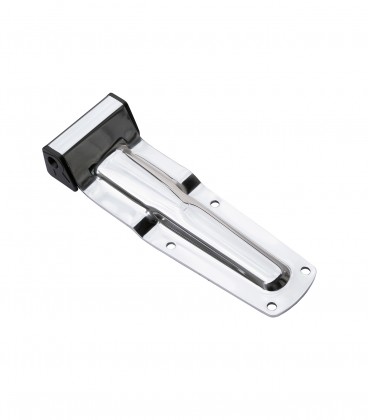

• Designed for rear truck doors
• Hinge blade material: stainless steel AISI 304 or zinc plated carbon steel.
• Fabricated in 4mm thick steel.
• Polyamide nylon bushes, 6.6 black.
• Material strain tested up to 1750Kg parallel to the direction of the axis (door weight).
• Material strain tested up to 1300Kg (stainless steel model) perpendicular to the axis and up to
1050Kg for the zinc plated model.
• Weight: 1043gr.
